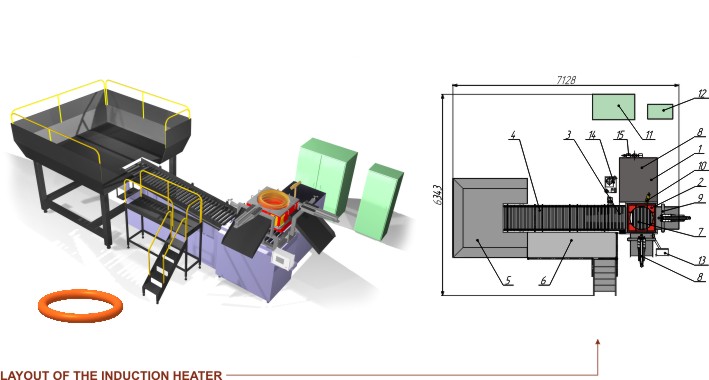

BASIC DELIVERY SET
- Induction heater cabinet
- Inductor
- Live roller bed
- Sloping roller conveyor
- Receiving bunker for billets
- Operating platform
- Mechanism for feeding billets into the inductor
- Separating mechanism
- Mechanism for unloading the inductor
- Pyrometer
- Frequency converter
- Electric equipment cabinet
- Control board
- Hydraulic drive
- Pneumatic drive
DELIVERY SET INCLUDES
- Operations manual
- Inductor drawings
- Set of spare parts
- ITEM DIMENSIONS
- Ring diameter – 250-700 mm
- Ring section 40-75 mm
OPERATING CHARACTERISTICS
- Operation mode is automatic, according to programmed requirements
- Output rate 1100-1200 kg/hour
- Maximum power – 500 kW
- Supply voltage – 380 V
- The billets are heated automatically in specified temperature interval
- Maximum heating temperature – 1300 C°
- Readjustment time with inductor exchange – 1 hour
- Cooling water pressure 0,3-0,4 MPa
- Cooling water rate 10 m³/hour
- Compressed air pressure 0,4-0,5 MPa
- Compressed air consumption – 1,2 m³/min
- Weight 3,5 tons
- Floor space covered 46 m², is based on 300 mm thick concrete bottom
THE INDUCTION HEATER IS EQUIPPED WITH
- Software control system on the base of “OMRON”, “Siemens” processors and others
- Protection system preventing billets welding in the inductor
- Billets heating temperature control system
- Billets separating system according to the temperature
- System protecting induction coil from overheating
- Billets heating temperature automatic control system
ADDITIONS TO BASIC DELIVERY SET
- Inductors
- Device for transporting heated billets
- Smooth feeding system of the billets into the inductor
- Tipping device for workshop containers
SERVICE
- Induction heater installation and adjustment at the customer’s facility
- Personnel training at equipment operation
